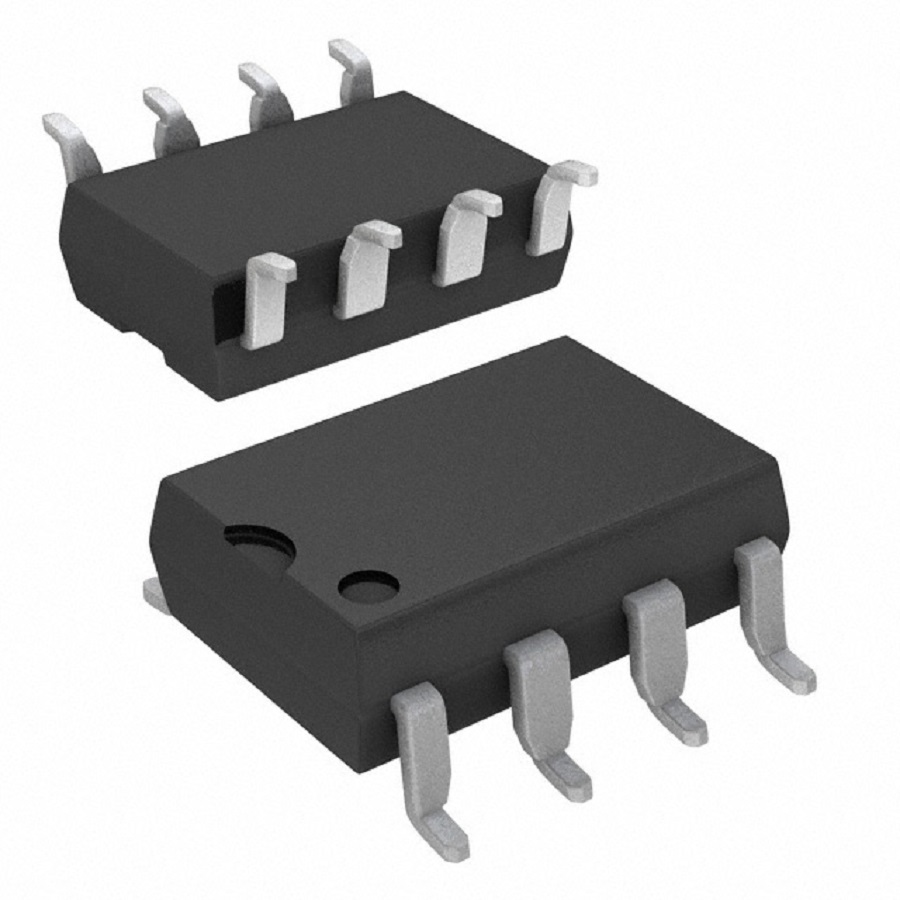

AMC1200SDUBR
Manufacturer:
Texas Instruments
Mfr.Part #:
AMC1200SDUBR
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation SOP-8 SMD/SMT Isolation Amplifiers Number of Circuits:1
| Parameter | Value |
|---|---|
| Length | 9.5 mm |
| Width | 6.57 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 4.85 mm |
| Packaging | Reel |
| Thickness | 3.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 850.995985 mg |
| Contact Plating | Gold |
| Number of Elements | 1 |
| Number of Circuits | 1 |
| Bandwidth | 100 kHz |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Max Power Dissipation | 44 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Max Supply Voltage (DC) | 5.5 V |
| Number of Channels | 1 |
| Common Mode Rejection Ratio (CMRR) | 108 dB |
| Operating Supply Current | 5.4 mA |
| -3db Bandwidth | 100 kHz |
| Number of Inputs | 1 |
| Max Input Voltage | 320 mV |
| Dual Supply Voltage | 5 V |
| Isolation Voltage | 4 kV |
| Output Current per Channel | 20 mA |
| Min Supply Voltage (DC) | 2.7 V |
| power consumption | 82.5 mW |
| Input Offset Voltage (Vos) | 200 µV |
| Max Dual Supply Voltage | 5.5 V |
| Number of Amplifiers | 1 |
| Power Supply Rejection Ratio (PSRR) | 61 dB |
| Schedule B | 8542330000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
| Amplifier Type | Isolation Amplifiers |
Stock: 8803
Distributors
pcbx
pcbxUnit Price$0.76963
Ext.Price$0.76963
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76963 | $0.76963 |
| 10 | $0.63965 | $6.39650 |
| 25 | $0.58054 | $14.51350 |
| 50 | $0.52690 | $26.34500 |
| 100 | $0.47821 | $47.82100 |
| 300 | $0.46515 | $139.54500 |
| 500 | $0.45245 | $226.22500 |
| 1000 | $0.44009 | $440.09000 |
